Fully Automatic Rotary

Medical / Pharmaceutical Machines

FAB/PH SERIES

Fully Automatic Rotary Medical / Pharmaceutical Packaging Machines

Starview’s automatic rotaries are ideal for high production requirements. Machines are offered in six and eight-station designs with standard sealing areas of 14 x 18 and 18 x 24 inches.

Rotary machines can be configured to produce all of the medical / pharmaceutical packages including Tyvek, foils and medical kraft to PETG or HIPS trays and typical wallet packs for clinical trials or controlled dosage.

FAB/PH Details:

Built for your market:

FAB/PH SERIES

Why a perfect fit?

The FAB/PH Series rotary type heat sealers are designed for medium to higher volume production requirements where automatic feeding and unloading is desired. These machines may be used for conventional carded blisters, full face blisters and half-clamshell styles as well as applications using medical paper, Tyvek, foils and other heat sealable lidstock.

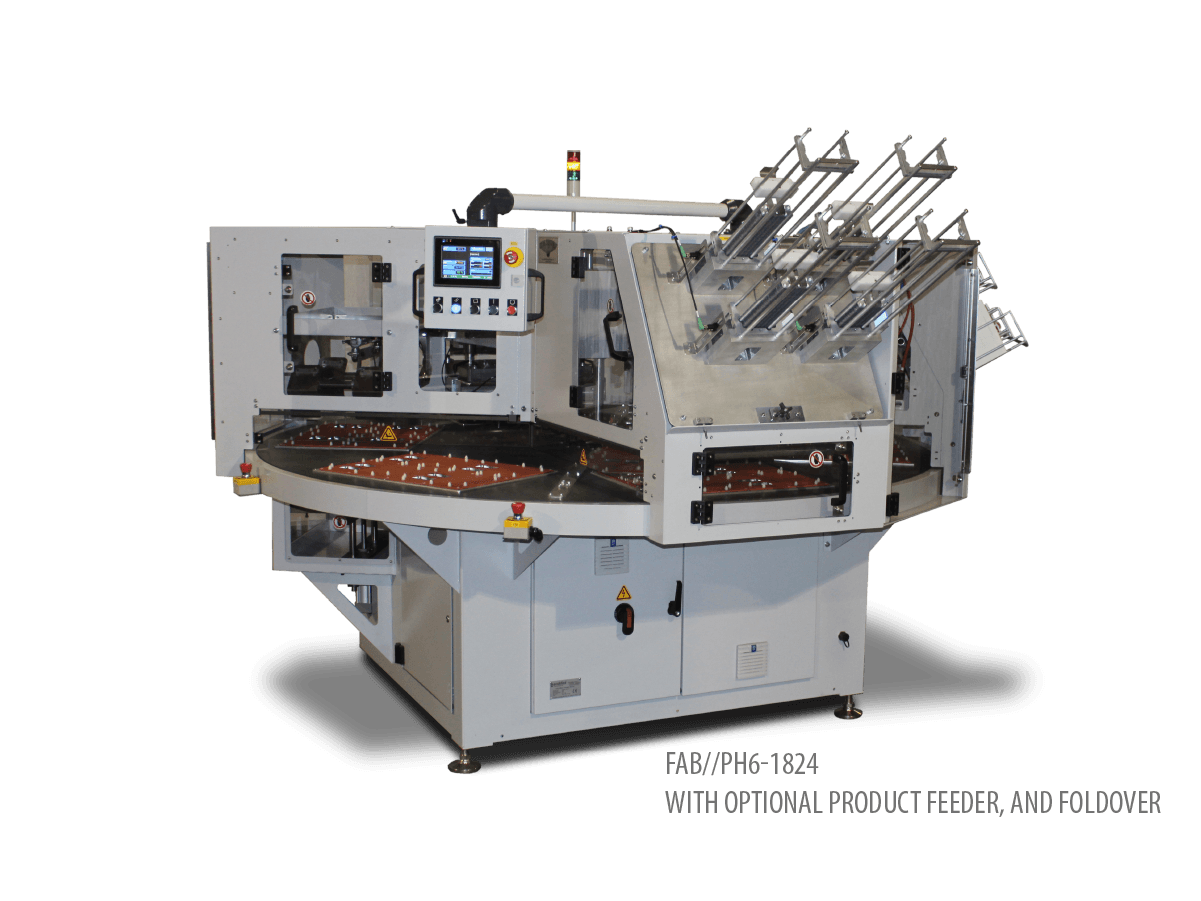

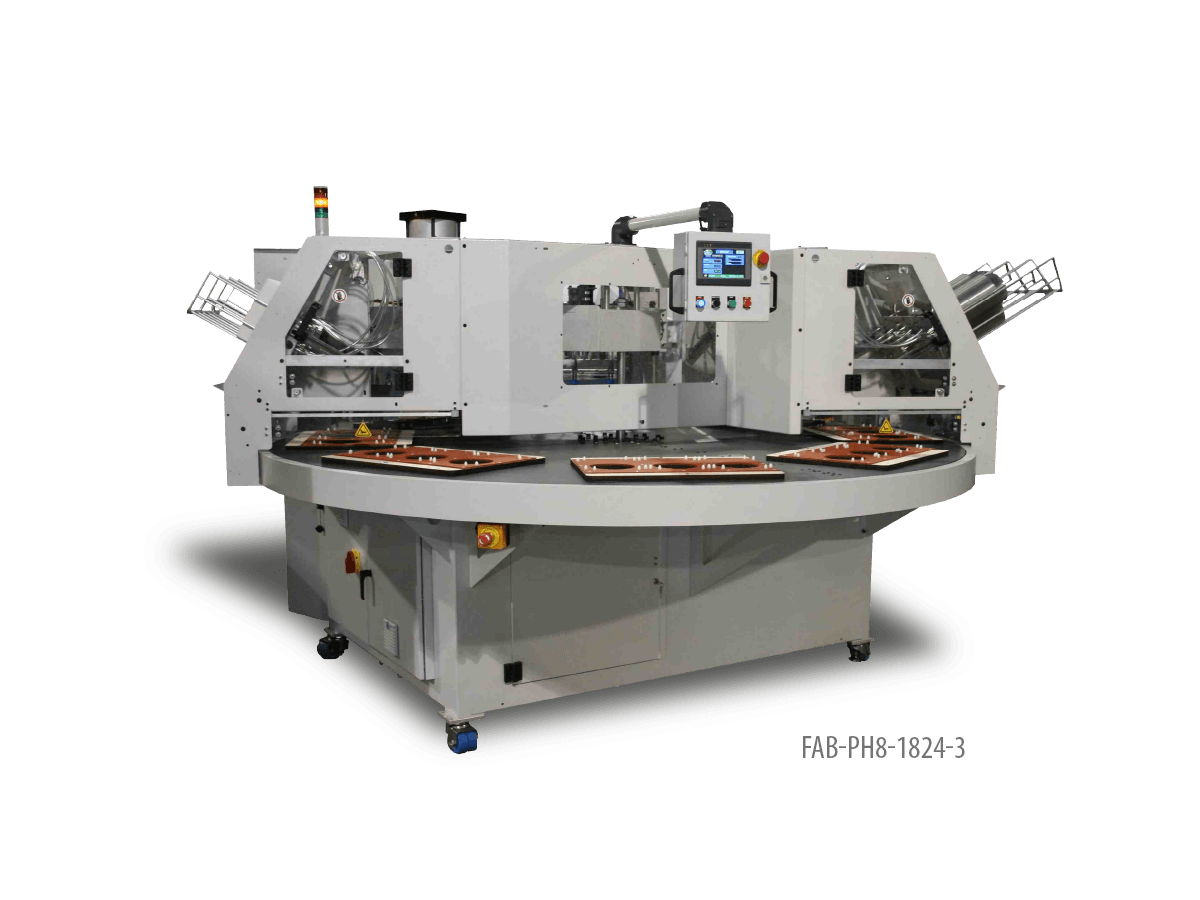

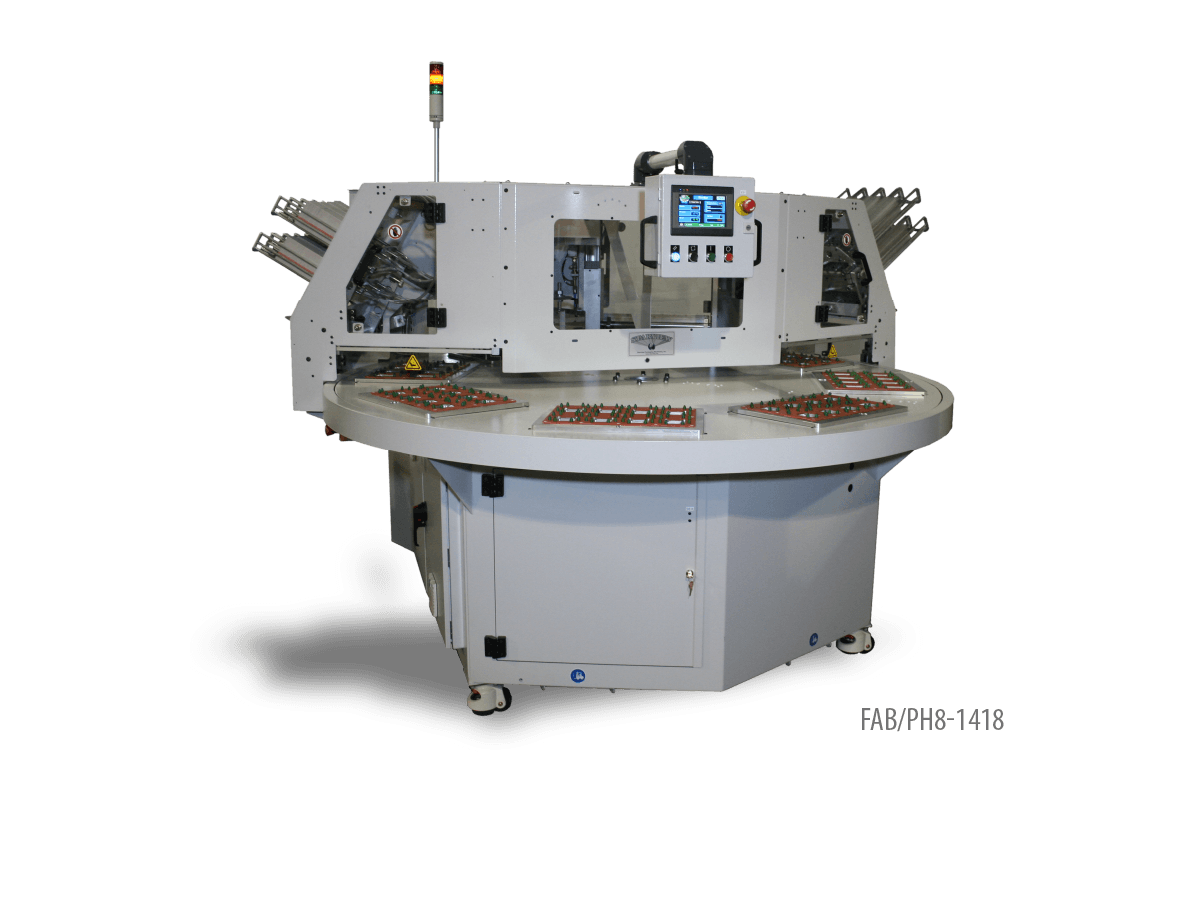

The FAB/PH Series units are available in six (6) and eight (8) station designs. Models are available in standard sealing areas of 14 x 18 inches and 18 x 24 inches. Larger sealing areas are available on request.

For higher production rate machines, please consider Starview’s CBS/PH inline conveyor sealing machines.

more information (pdf) series comparison

A wide range of standard and optional features available to match customer requirements.
Generous use of powder coated steel, stainless steel and polycarbonate in the structure for the most durable finish in the industry.
Color touch screen HMI for the ultimate in operator convenience and accessibility. Includes storage for 99 databases and on-screen data tracking.
A Starview exclusive remote access via standard Ethernet hardwire or optional Wi-Fi router gives management access to real-time process information from the machine.
On-screen temperature calibration standard with optional on-screen pressure calibration available to simplify validation using direct access validation ports.
Ultra-high pressure sealing presses used in conjunction with matched aluminum tooling to give consistent sealing patterns with any heat sealable medical lidding materials.
Precision indexing rotary table for precise sealing fixture to matching relieved face plate alignment.
Industry leading design, construction, features and customer support.
