Die Cutting

the Starview advantage
  • A simple and economical solution to provide steel rule die cutting for skin boards, thermoformed parts, gaskets, etc.
  • Simple controls for ease of operation.
  • Utilizes standard low-cost steel rule cutting dies for quick and easy changeover.
  • Starview exclusive soft-start and soft-stop solid state drive system for longer system life.
  • Rolls reverse for cutting in both directions to increase productivity.
  • Larger than industry normal precision ground pressure rollers for minimal deflection during cutting.
  • In automatic machines, two sizes available to handle 18” through 30” wide skin boards.
  • A single machine able to cut, slit or perforate with products facing up on skin boards.
  • Cross-cut is programmable and slitting wheels are moveable for altering cutting pattern without having to make new cutting dies.
  • Linear skin board travel facilitates production work flow.
  • Small footprint to conserve floor space.
  • Industry leading design, construction, features and customer support.

More than one possibility:

machines' customization

Starview’s Large Scale Skin Packaging Machine with Roller Die Cutter

Need to secure a large product or large array of products. Starview has a standard or custom sized Skin Packaging Machine and Die Cutting Machine ready for your needs. Here is our SP 3648 with RP40 for you to see the most reliable, robust machines in market can work for you.

take a look at our costumized machines


Skin is back in for B2B shipments. Securely package your product with our recently updated skin packaging system. Automatic skin packaging with slitter die cutting to lower labor costs and increase output with the only full system in market today.

more about automatization

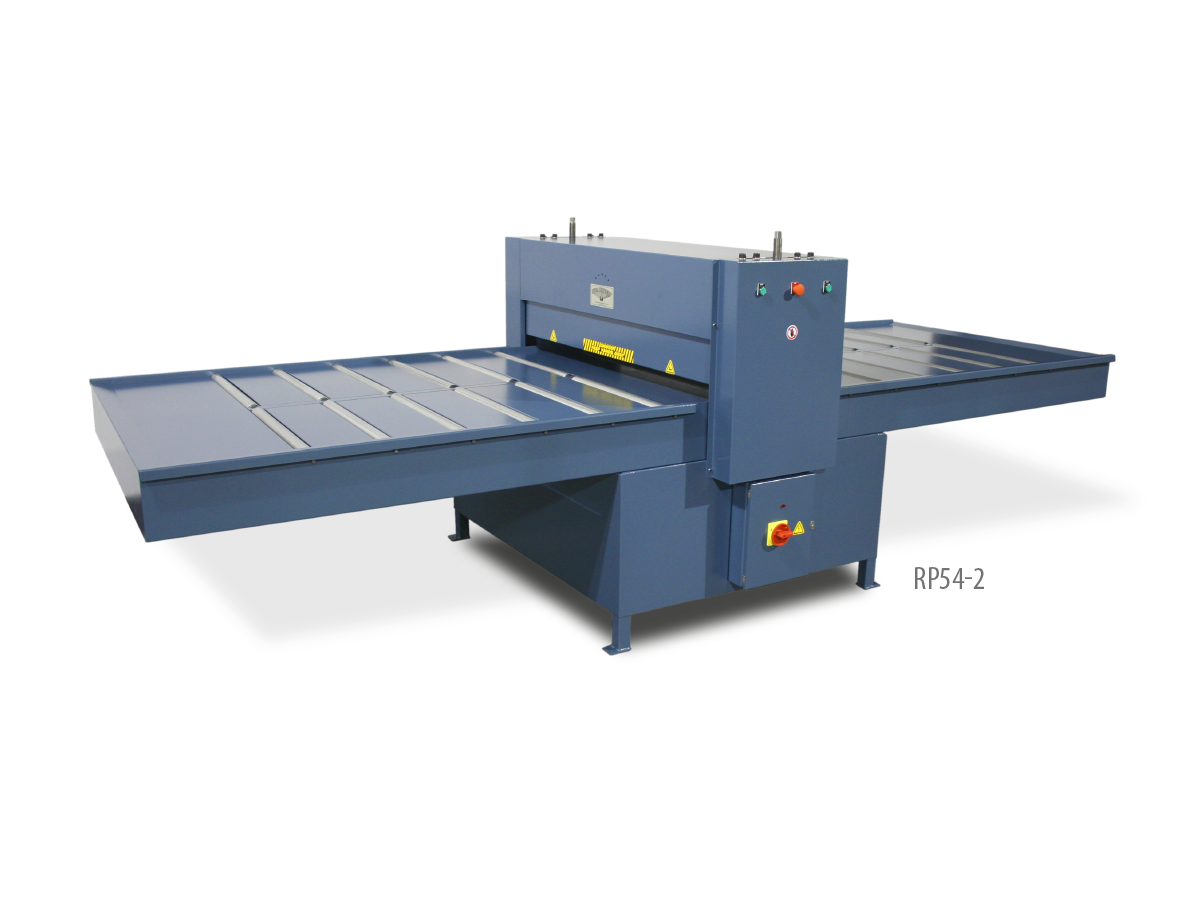

Roller Die Cutting Machines
RP Series
Roller Die Cutting Machines

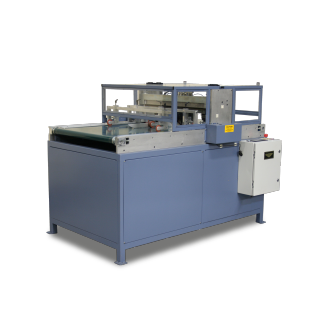

Automatic Slitting / Die Cutting Machines
SDC Series
Automatic Slitting / Die Cutting Machines
Type of machine: Die cutting for skin board, thermoforming etc. Automatic Slitting
Type of production: trimming cut, slit perforate
Maximum width: 23” to 55“ 24” or 30“
Maximum length: Unlimited 40”
Maximum height: 6.0” 5.0”
Driven rolls: Lower or Upper & Lower N/A
Diameter-pressure rolls: 5.5” or 7.5” N/A
Motor horsepower: 1, 2 or 3 N/A
Slitting: N/A (5) single-cut standard
Cross cut style: N/A 10,000 lbs.
Hang hole punching: N/A Available
Average cycle speed: 1 – 4 cpm 1 – 4 cpm
Electrical: 208-240 Volts / 3 PH /
8 Amps , 15 Amps or 20 Amps
208-240 Volts / 3 PH / 10 Amps
