Fully Automatic Eight-station Stretch Pak Machines
Starview’s FASP Series eight-station automated rotary Stretch Pak machines are ideal for high volume production. These machines are capable of up to 16 cycles per minute in production with a generous maximum card size of 16 x 18”.
The FASP Series Stretch Pak machines will operate using PVC or Surlyn windowed cards.
FASP Details:
Built for your market:
FASP Series
Why a perfect fit?

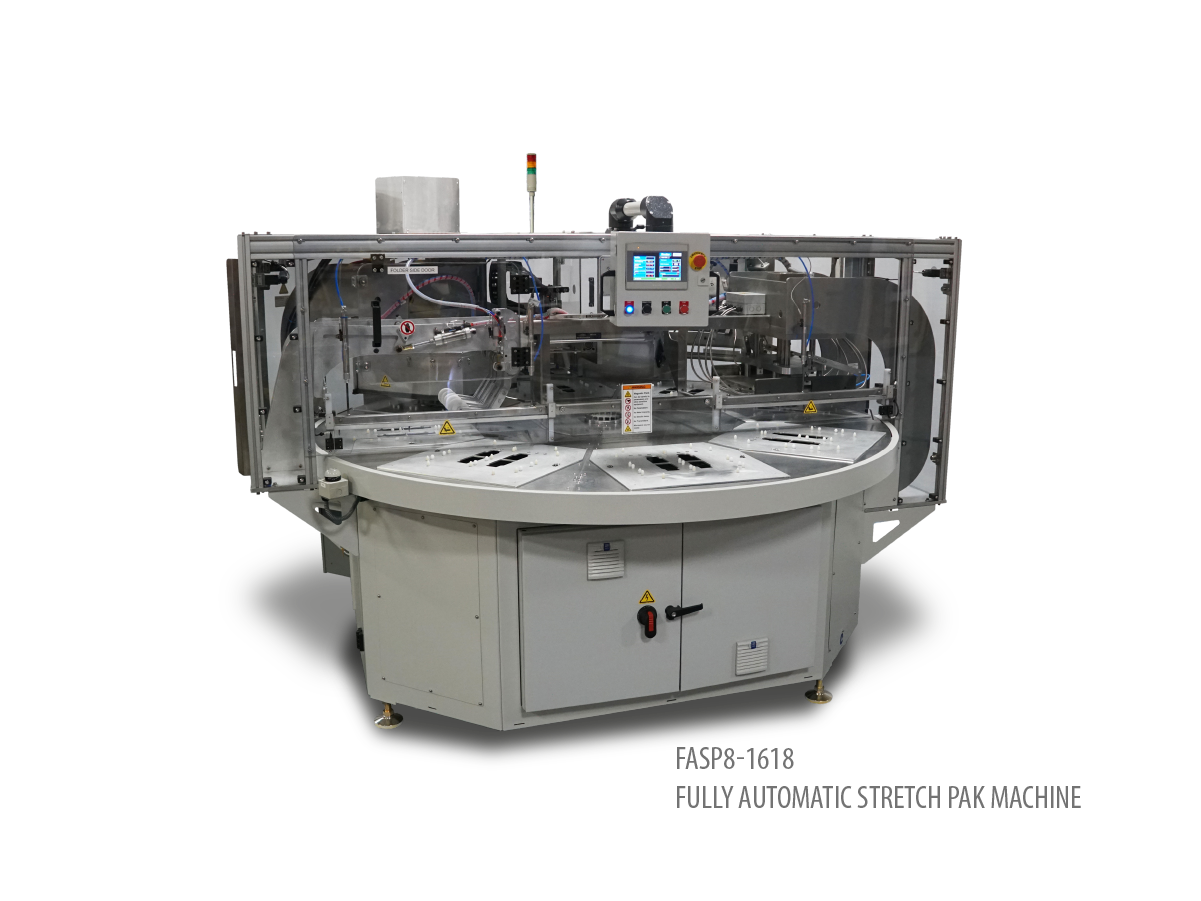

Starview’s FASP8-1618 Automated rotary type Stretch Pak machines are ideal for high volume or JIT production.
Given the proper conditions these machines are capable of up to 16 cycles per minute in production. The Automated Stretch Pak machines are built with the capability to feed cards, form cavities, fold over cards, RF seal cards and unload finished packages. With three (3) open loading stations these machines are ideal for hand placed or automated product loading or where multiple items are to be placed in a single package.
An accurate cam drive indexer is used for precision sealing/forming fixture position repeatability. Fixture
advancement speed is adjustable. The time interval at which the fixtures index is also adjustable to pace the
operator(s) who load product(s) as they pass the open stations. Stretch Pak card(s) are fed from easily loaded
quick-change feeder magazines. Forming, fold-over and RF welding cycles are automatic and controlled by the
PLC. Finished packages are automatically transferred from the machine to a conveyor with a linear transfer pick
and place unit where they travel through the heated air knife. An optional inline slitter is available to separate
cost- efficient gang-run cards.
All FASP8-1618 machines feature automatic system start-up where the stations are turned on at the appropriate interval and an automatic system clear that deactivates the stations in the reverse order. This saves manually turning on each function until all sealing/forming fixtures are filled.
A wide range of standard and custom automation features available to match customer requirements.
ANSI Class 4 machine safety for operator protection.
Operator friendly machine to simplify manual or automated product loading.
An industry exclusive advanced technology Solid State RF sealing press gives maximum package sealing power efficiency and precision sealing program repeatability.
Pendant mounted color touch screen HMI for the ultimate in operator convenience and accessibility.
A Starview exclusive remote access via standard Ethernet hardwire or optional Wi-Fi router gives management access to process information in real time from the machine.
