medical &

Packaging Machines

the Starview advantage
  • A wide range of standard and optional features available to match customer requirements.
  • Generous use of powder coated steel, stainless steel and polycarbonate in the structure for the most durable finish in the industry.
  • Color touch screen HMI for the ultimate in operator convenience and accessibility. Includes storage for 99 databases and on-screen data tracking.
  • A Starview exclusive remote access via standard Ethernet hardwire or optional Wi-Fi router gives management access to real-time process information from the machine.
  • On-screen temperature calibration standard with optional on-screen pressure calibration available to simplify validation using direct access validation ports.
  • Ultra-high pressure sealing presses used in conjunction with matched aluminum tooling to give consistent sealing patterns with any heat sealable medical lidding materials.
  • Precision indexing rotary table for precise sealing fixture to matching relieved face plate alignment.
  • Industry leading design, construction, features and customer support.

More than one possibility:


Starview’s Semi-Automatic Medical Device Tray Sealer ERB/PH4-1418

It's time to increase output from your manual machine. Starview's ERB/PH series of machines increases your efficiency, reduces labor and gives you the largest selection of sizes and models in the market. From 4 to 6 to 8 station rotaries in 14"x18" and 18"x24" seal area plus optional Tyvek lid feeding and unloading. Perfect for medium volume medical tray or pharmaceutical wallet packaging.

more about ERB series

Customized Machine

Starview’s Custom FAB/PH8-1418 Semi-Automatic Medical Device Rotary Tray Sealer

Starview leads the Medical Device Tray Sealer Market with custom designed and integrated packaging machines. We bring 30+ years of expertise and innovative design to meet your most demanding needs. Automation of your packaging, marking, verification and validation are just a few of the features we can help you achieve in your packaging operations.

see our customized machines

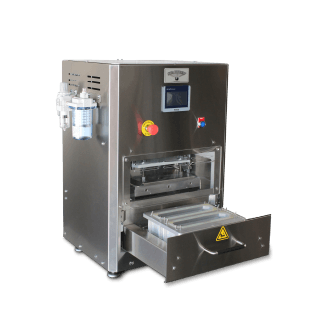

Table Top Manual Shuttle Medical & Pharmaceutical Packaging Machines
SB/PH1-1012 Series
Table Top Manual Shuttle

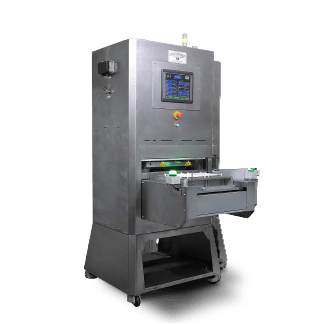

Manual Shuttle Medical & Pharmaceutical Packaging Machines
SB/PH1-1418 Series
Manual Shuttle

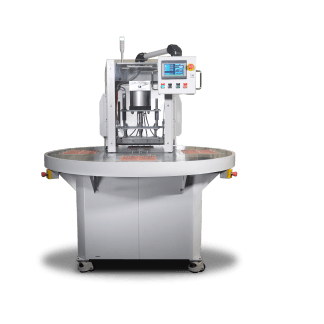

Semi-automatic Rotary Medical & Pharmaceutical Packaging Machines
ERB/PH Series
Semi-automatic Rotary
Size type of production: Low Small medium to high volume
Nominal sealing area: 10” x 12” 18” x 24“ / 24” x 30“ / 24” x 36“ 14” x 18” /18” x 24“
# of open load stations: 1 1 3 or 5
Max. blister depth: 3.0” 3.0” 3.25"
Heating system: 1 zone multi zones multi zones
Table Index: N/A N/A Automatic
Tyvek feeder: N/A N/A Optional attached or Self-standing
# of automatic feeders: N/A N/A Optional Tyvek feeder
Finished package unloader: N/A N/A Optional
Electrical: 115 Volts / 1PH / 13 Amps 208-230 Volts / 1PH / 30 Amps
or 208-230 Volts / 3PH / 25 Amps
208-230 Volts / 1PH / 25 or 55 Amps
or 208-230 Volts / 3PH / 40 Amps

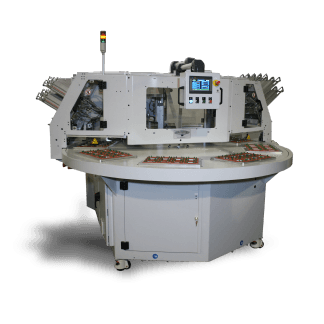

Fully Automatic Rotary Medical & Pharmaceutical Packaging Machines
FAB/PH Series
Fully Automatic Rotary

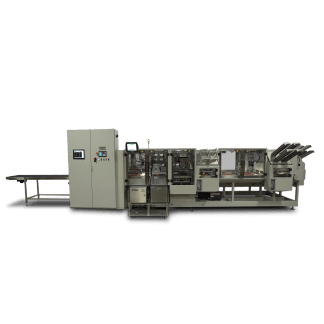

Fully Automatic Carousel Blister Sealing Machines
BSC/PH Series
Fully Automatic Carousel

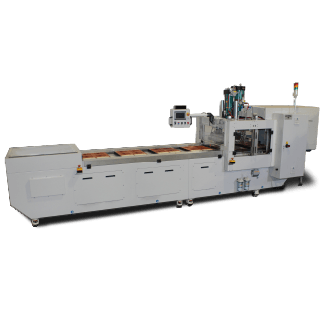

Fully Automatic Inline Blister Sealing Machines
CBS/PH Series
Fully Automatic Inline
Size type of production: medium to high volume Hight volume Hight volume
Nominal sealing area: 14” x 18” / 18” x 24“ 14” x 18” / 18” x 24“ 14” x 28”
Max. blister depth: 3.0” 3.25” 3.25”
Prod. loading operation: Fully-automatic Fully-automatic Fully-automatic
# of sealing fixtures: 6 or 8 16 16
Open loading stations: 2-3 or 4 9 9
Tyvek feeder: Automatic or Self-standing Standard Automatic or Self-standing
# of automatic feeders: 2 Standard 2
Card feeder(s): Standard Standard Standard
Finished package unloader: Standard Standard Standard
Electrical: 208-230 Volts / 3PH / 45 Amps 208-230 Volts / 3PH / 50 Amps 208-230 Volts / 3PH / 50 Amps
