Fully Automatic Inline

Medical / Pharmaceutical Machines

CBS/PH SERIES

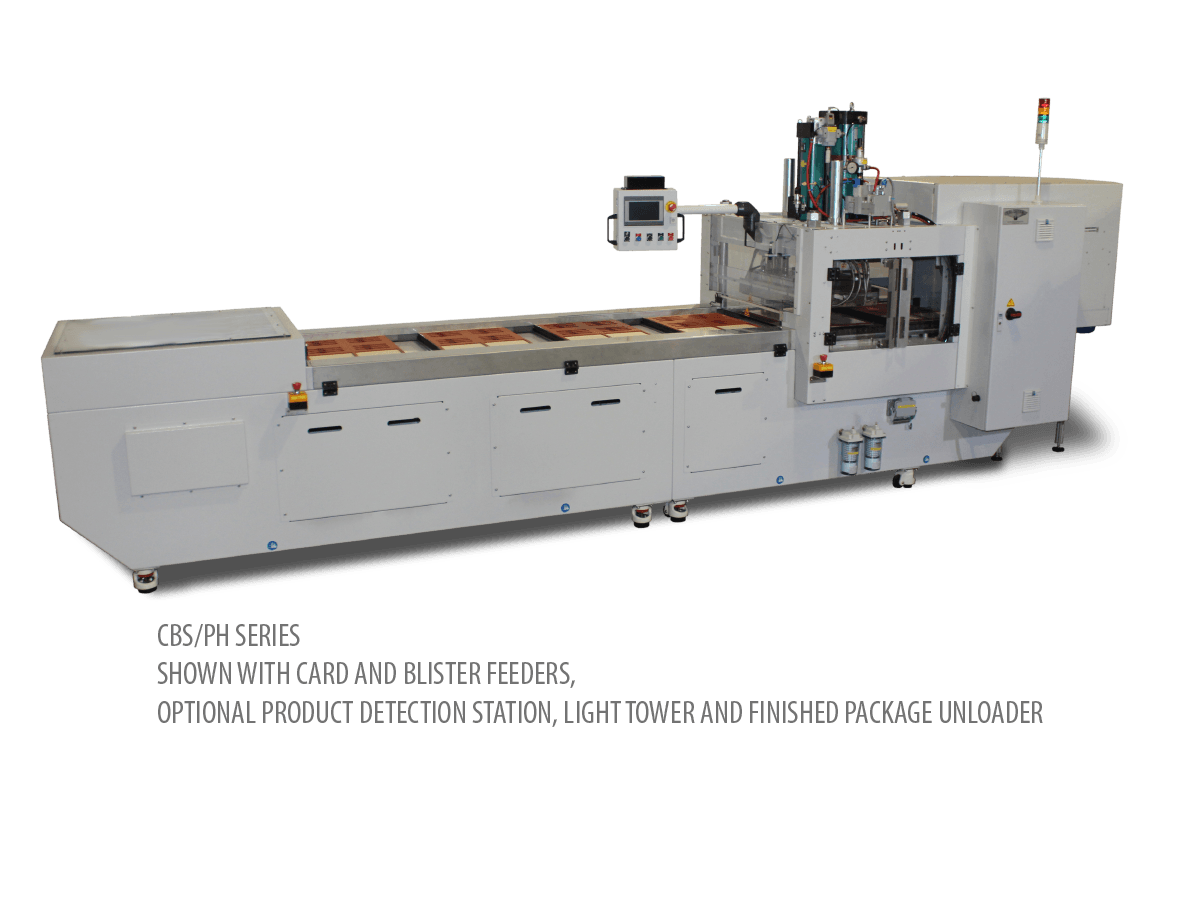

Fully Automatic Inline Medical / Pharmaceutical Packaging Machines

Starview’s CBS/PH Series machines are ideal for long, high-production quantity runs. These fully automated machines are available with thirty or more-stations and a standard sealing area of 14 x 28 inches.

Automated feeding and finished package unloading are included. CBS/PH Series machines are well suited to produce typical wallet packs for clinical trials or controlled dosage.

CBS/PH Details:

Built for your market:

CBS/PH SERIES

Why a perfect fit?

The CBS/PH Series inline conveyor type heat sealers are designed for high volume production requirements. These machines may be used for pharmaceutical wallet pack as well as medical device applications using medical papers, Tyvek, foils and other heat sealable lidstock. Given the proper conditions these machines are capable of up to 20 cycles per minute in production.

The Automated Inline Conveyor blister sealing machines are built with the capability to feed blister(s), tray(s), card(s), Tyvek and discharge finished packages when proper tooling is installed. With seven (7) open loading stations these machines are ideal for automated product loading or where multiple items are to be placed in a single package.

Machines with other sealing areas and different numbers of stations are also available. Consider Starview’s FAB/PH automatic rotary packaging machine.

more information (pdf) series comparison

A wide range of standard and optional features available to match customer requirements.
Generous use of powder coated steel, stainless steel and polycarbonate in the structure for the most durable finish in the industry.
Color touch screen HMI for the ultimate in operator convenience and accessibility. Includes storage for 99 databases and on-screen data tracking.
A Starview exclusive remote access via standard Ethernet hardwire or optional Wi-Fi router gives management access to real-time process information from the machine.
On-screen temperature calibration standard with optional on-screen pressure calibration available to simplify validation using direct access validation ports.
Ultra-high pressure sealing presses used in conjunction with matched aluminum tooling to give consistent sealing patterns with any heat sealable medical lidding materials.
Precision indexing rotary table for precise sealing fixture to matching relieved face plate alignment.
Industry leading design, construction, features and customer support.
