Semi and Fully Automatic

Board to Tray Food Packaging Machines

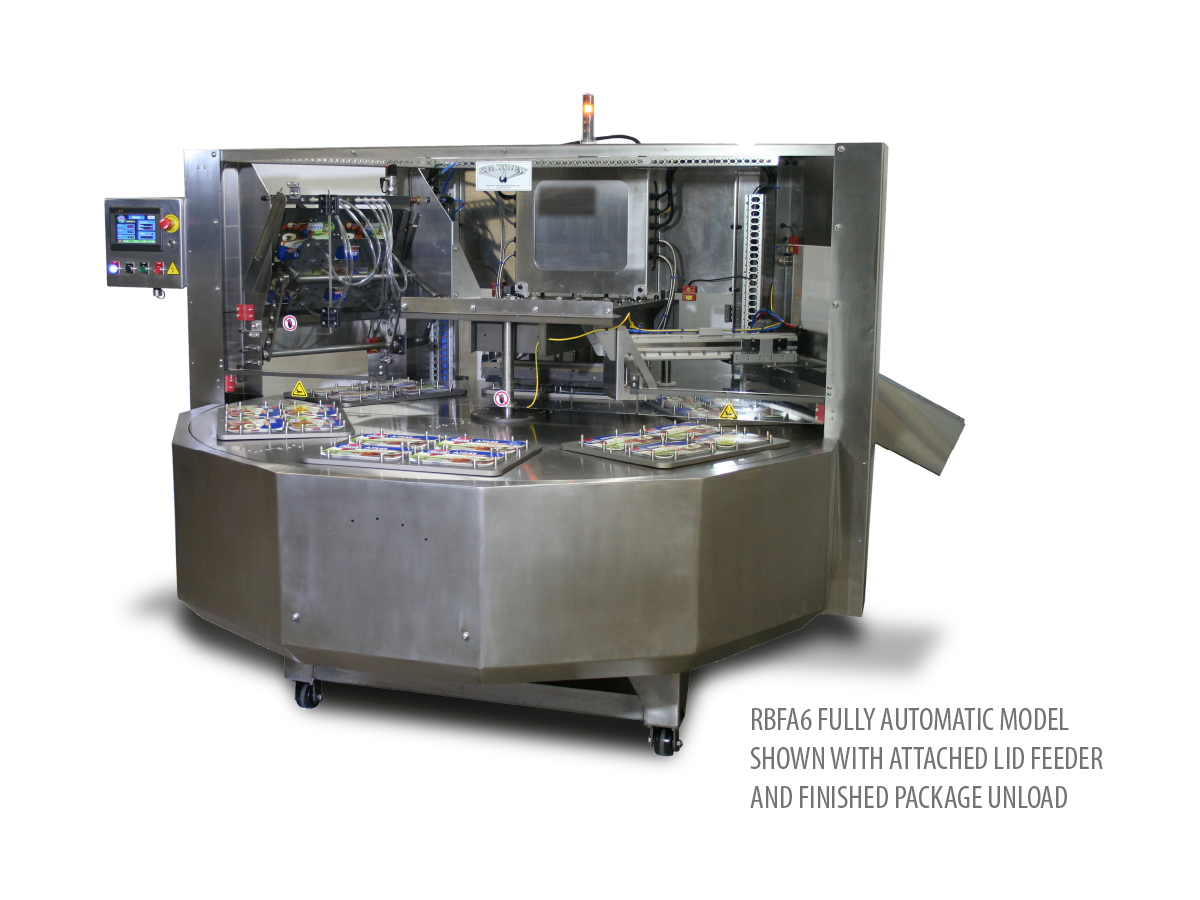

rbf rbfa board to tray food packaging machine

RBF & RBFA Series

Semi and Fully Automatic Board to Tray food packaging machine

Starview’s RBF and RBFA Series machines are designed to heat seal paperboard lids to plastic and paperboard trays. These six-station rotary machines have a standard 15” x 20” sealing area.

The RBFA automatic version includes a lid feeder and finished package unloader.

RBF & RBFA Details:

Built for your market:

RBF & RBFA Series

Why a perfect fit?

The Starview’s RBF & RBFA Series rotary type heat sealers are designed for medium to higher volume production requirements. These machines are designed for producing all board heat sealable food containers. RBF & RBFA Series machines may also be used for conventional carded blisters, full face blisters and half-clamshell styles as well as applications using Tyvek, foils and other heat sealable lidstock. The RBF & RBFA Series units are available in six (6) station designs with a standard sealing area of 15 x 20 inches. Other sealing areas are available on request.

The standard RBF Series machines have one sealing station with the remaining five (5) stations used for tray loading and unloading. The RBFA Series machines feature one sealing station, one lid feeding station and one finished package unloading station with the remaining three (3)stations used for tray loading.

more information (pdf) series comparison

A wide range of standard and optional features available to match customer requirements.
AC Variable frequency precision cam index rotary table drive for smooth table operation and position repeatability.
Standard Lid feeder and finished package unloader on RBFA models and optional finished package unloader on RBF models increase the machine versatility and lowers labor costs.
Uses quick-change anodized aluminum tooling.
Convenient touch screen controls for operator convenience, accessibility and process repeatability.
A Starview exclusive remote access via standard Ethernet hardwire or optional Wi-Fi router gives management access to real-time process information from the machine.
Starview’s exclusive selectable sealing station program allows the use of one (1) through six (6) sealing fixtures with operator selected start position from HMI.
Stainless steel wash down construction to allow cleaning in a food handling environment.
Industry leading design, construction, features and customer support.
