Automatic Rotary

Food Tray Packaging Machines

RTS/MAP4-1015 Series

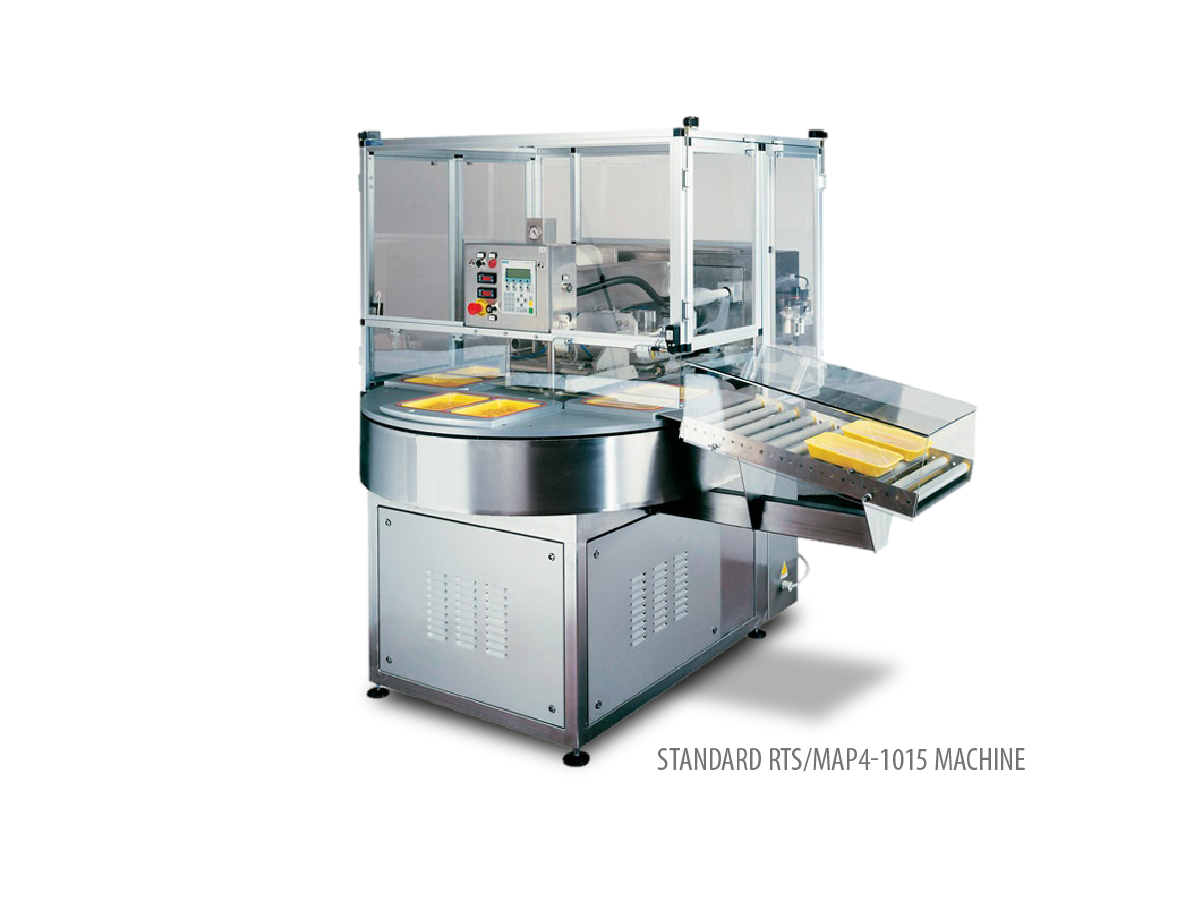

Automatic Rotary film to tray food packaging machine

Starview’s RTS/MAP4 Series machines are rotary production machines for “fresh counter” packaging including the capability to produce Modified Atmosphere Protection (MAP) packages. Sealing areas of 10” x 15” is standard.

Clear, random printed or registered film is sealed to a preformed tray and profile trimmed.

RTS/MAP4-1015 Details:

Built for your market:

RTS/MAP4-1015 Series

Why a perfect fit?

Starview’s RTS/MAP Series machine are designed and competitively priced for “fresh counter” packaging, typically a clear or printed film to a preformed tray for food manufacturing companies, catering, grocery stores, etc.

The RTS/MAP Series provides a modified atmosphere in the package prior to sealing. The RTS/MAP Series is ideal for medium to high production. This series machines can adapt to seal for a wide range of product tray sizes by simply changing the tooling.

These machines trim the film to the profile of the tray and automatically rewind the scrap web. The RTS/MAP Series sealers will provide years of dependable performance with a minimum of maintenance.

For machines capable of higher production rates or the addition of inline fillers, printers, etc. please consider Starview’s AITS-1216 & AITS-1220 series Automatic Inline Food Tray Packaging Machines.

more information (pdf) series comparison

A wide range of standard and optional features available to match customer requirements.
AC Variable frequency precision cam index rotary table drive for smooth table operation and position repeatability.
Standard finished package unloader increases the machine versatility and lowers labor costs.
Uses quick-change anodized aluminum tooling.
Convenient touch screen controls for operator convenience, accessibility and process repeatability.
A Starview exclusive remote access via standard Ethernet hardwire or optional Wi-Fi router gives management access to real-time process information from the machine.
Starview’s exclusive selectable sealing station program allows the use of one (1) through six (6) sealing fixtures with operator selected start position from HMI.
Models available with and without modified atmosphere protection (MAP) capability.
Automatic film feed, seal & trim and scrap rewind for clear or random print film. Registered print film feed optional.
Stainless steel wash down construction to allow cleaning in a food handling environment.
Industry leading design, construction, features and customer support.
