Fully Automatic Rotary

All Paper Blister Packaging Machines

FAB APB SERIES

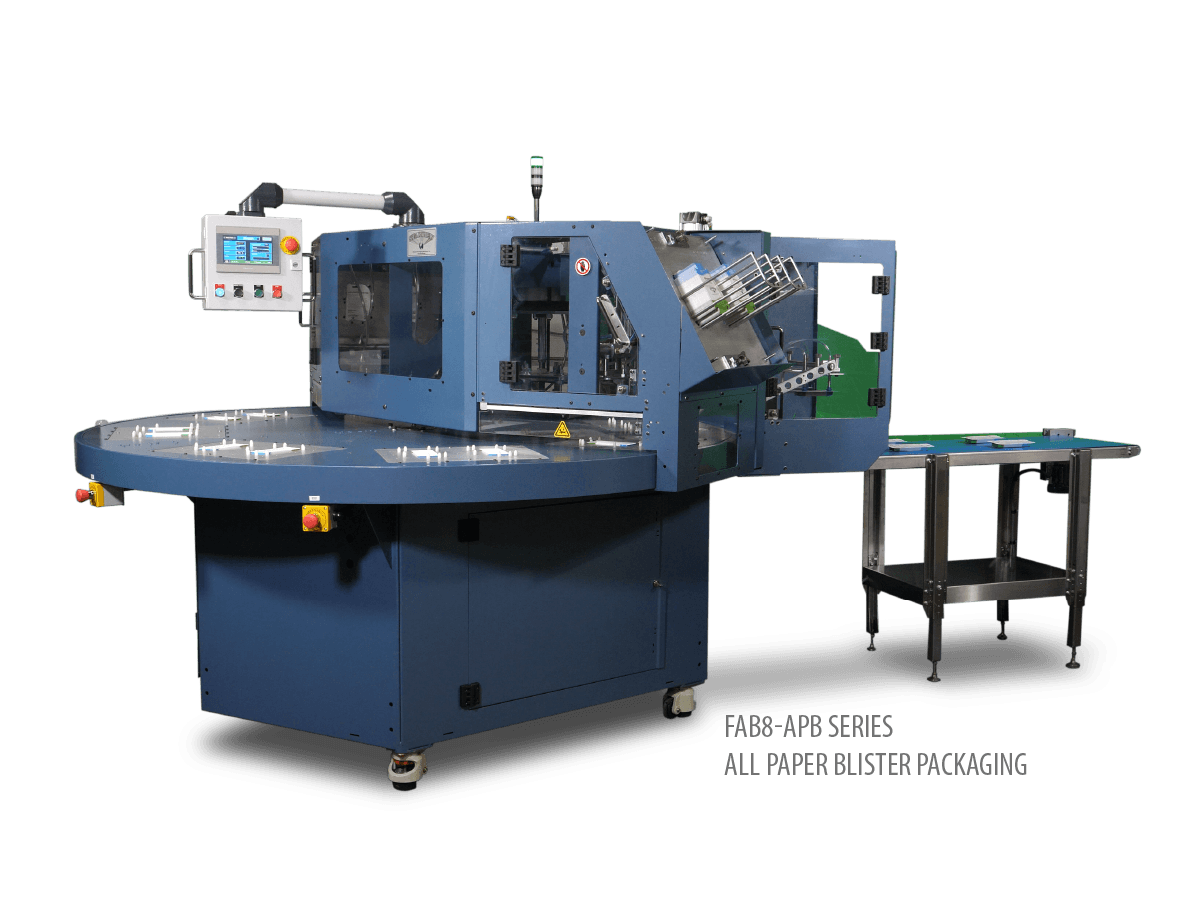

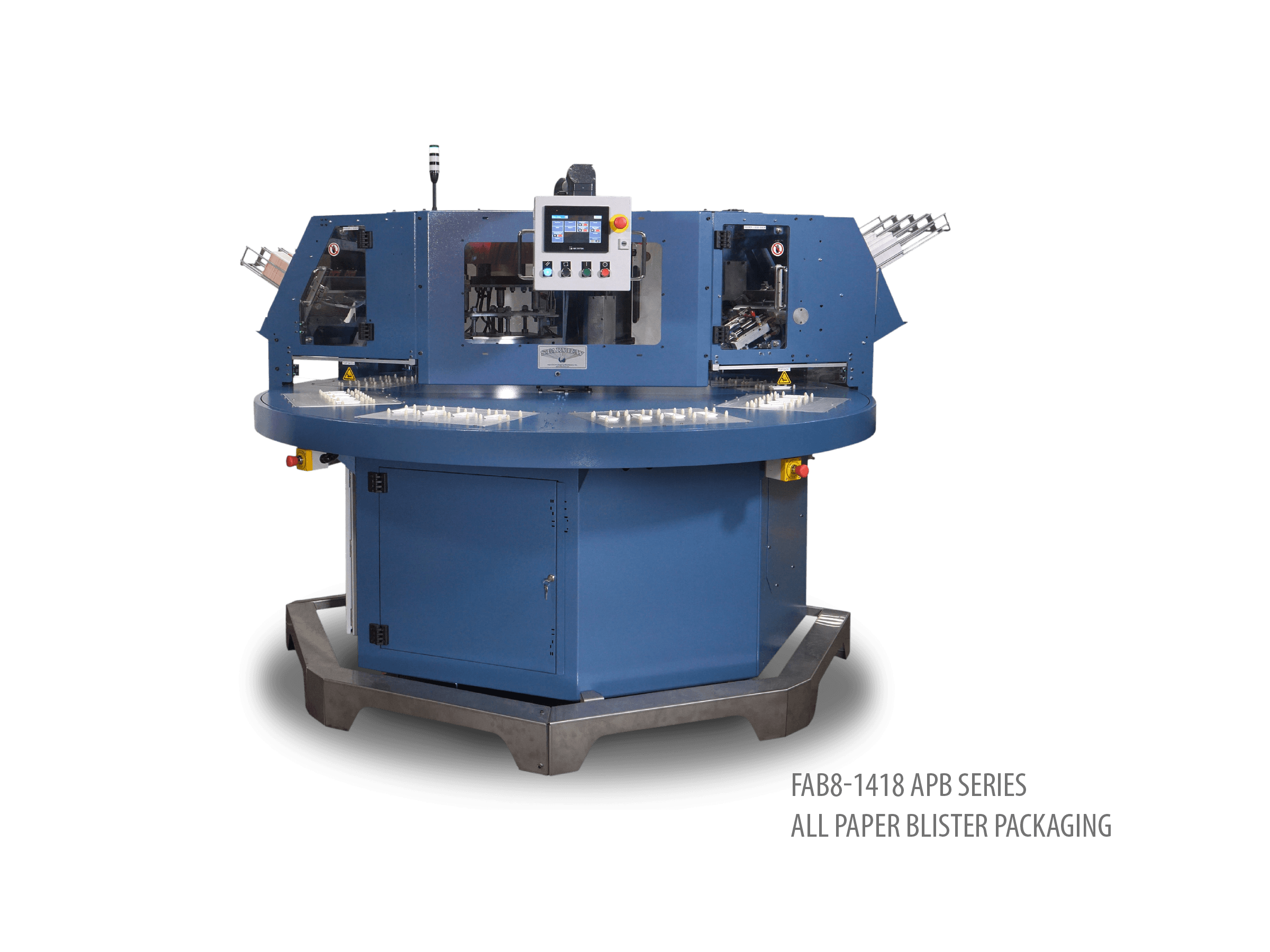

Fully Automatic Rotary Blister Packaging Machines

With

auxiliary All Paper Blister feeder option

Starview's FAB Series machines are the workhorse of the industry. These fully automated machines are available with six or eight-stations and standard sealing areas of 14 x 18 and 18 x 24 inches.

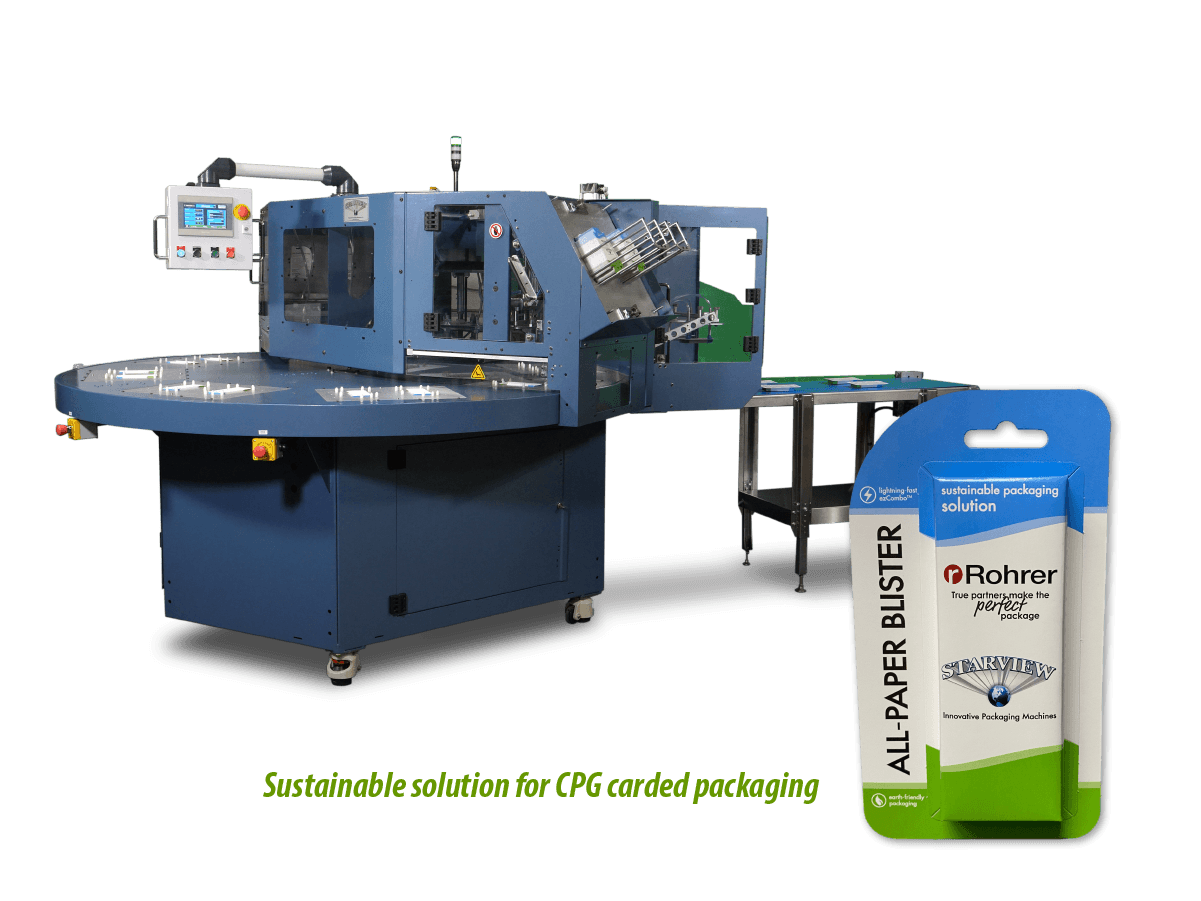

Environmentally friendly packaging materials just got economically processed with Starview's Ecological Solution for CPG Carded Packaging.
The All-Paper Blister is part of Rohrer's ezCombo program.

FAB APB Details:

Built for your market:

FAB with APB SERIES

Why a perfect fit?

Starview’s FAB Series fully automated rotary type blister sealing machines are ideal for high volume or JIT production. Given the proper conditions certain models of these machines are capable of up to 20 cycles per minute in production. The FAB Series automated rotary blister sealing machines are built with the capability to feed blister(s), blister card(s) and discharge finished packages when proper tooling is installed. These machines may be used for conventional carded blisters, trapped listers, club store trapped packages, full face blisters and half-clamshell styles as well as some applications using Tyvek, foils and other heat sealable lidstock. Four (4), six (6) and eight (8) station models are available. Four station models have 10” x 12” and 12” x 16” sealing areas and six and eight station machines are available with 14” x 18” or 18” x 24” sealing areas.

For machines of higher finished package volumes or with additional open stations for automation please consider Starview’s BSC or CBS machines.

more information (pdf) series comparison

A wide range of standard and custom automation features available to match customer requirements.
ANSI Class 4 machine safety for operator protection.
Automatic blister feeder, card feeder & finished package unloader provide reduced labor costs.
Color touch screen HMI for the ultimate in operator convenience and accessibility. Includes storage for 99 databases and on-screen data tracking.
A Starview exclusive remote access via standard Ethernet hardwire or optional Wi-Fi router gives management access to real-time process information from the machine.
AC Variable frequency precision cam index rotary table drive for smooth table operation and position repeatability.
Uses quick-change cost effective multi-ply hardwood or durable aluminum tooling.
Industry leading design, construction, features and customer support.
