SV-D542 Series

Horizontal & Vertical Band Sealers — AHSV / AVTSV

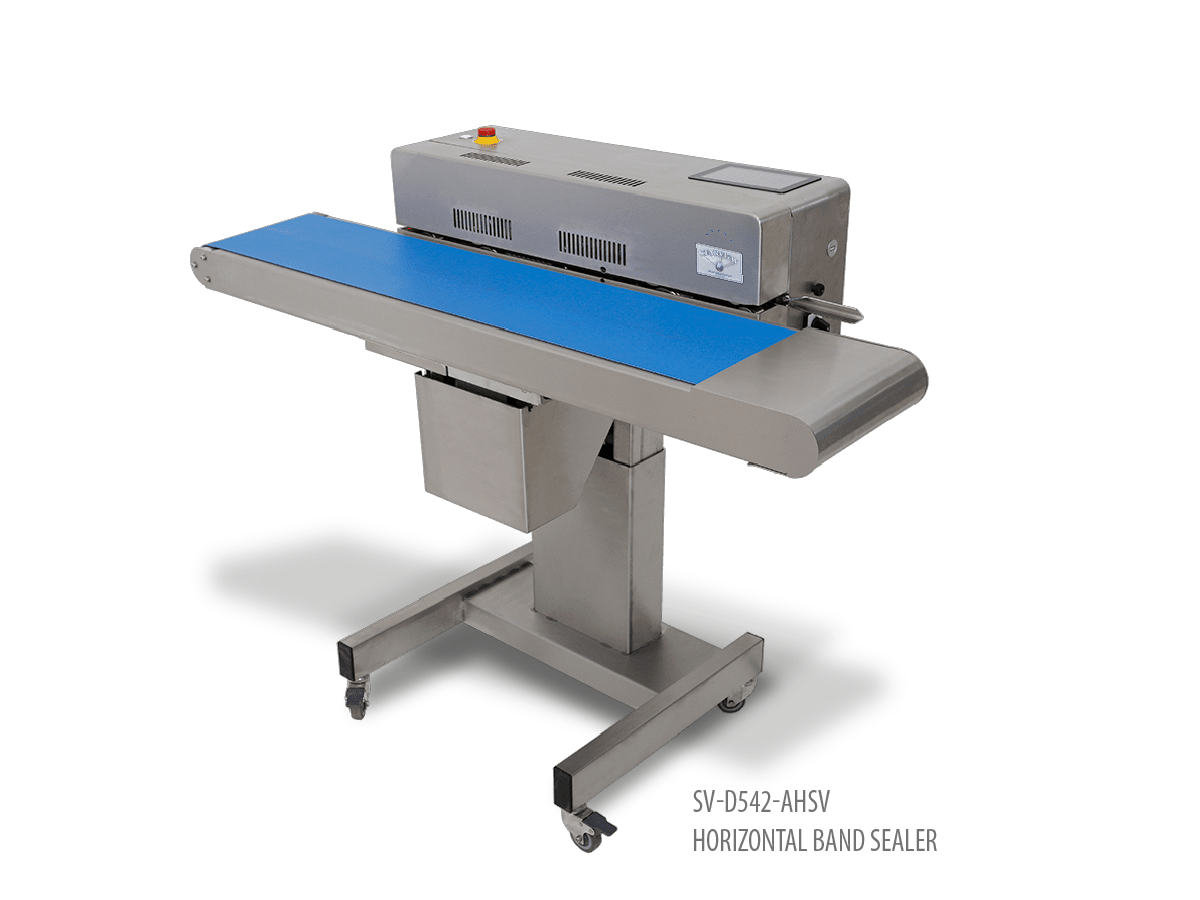

SV-D542 AHSV Horizontal Band Sealer
SV-D542 AVTSV Vertical Band Sealer

SV-D542 SERIES

Horizontal & Vertical Band Sealers

The SV-D542 Series, available in horizontal (AHSV) and vertical (AVTSV) configurations, are state-of-the-art validatable band sealers designed for the stringent requirements of the medical, pharmaceutical, and high-tech industries.

Engineered for precision and built for reliability, they deliver consistent, compliant, and hermetic seals — every time.

SV-D542 Details:

Built for your market:

SV-D542 SERIES

Why a perfect fit?

The SV-D542 Series are state-of-the-art validatable continuous band sealers designed for the stringent requirements of the medical, pharmaceutical, and high-tech industries. The SV-D542 AHSV, an upgrade to the 552 Med, seals horizontally on a conveyor line for continuous, high-throughput production, with an adjustable conveyor angle (0°, 15°, 30°) suited to liquids or items prone to spilling. The SV-D542 AVTSV, an upgrade to the 555 Med, seals vertically for a compact, space-saving footprint, with a rotating head that converts between horizontal and vertical configurations to fit tight production layouts. Both models are engineered for precision and built for reliability, delivering consistent, compliant, and hermetic seals every time.

For applications that require vacuum evacuation or gas flush prior to sealing, consider Starview’s SV-PVT Plus Med validatable vacuum sealer.

more information (pdf) series comparison
the Starview advantage
  • Stainless steel construction and a rigid, stable platform install easily in medical and pharmaceutical environments, with electrically adjustable sealing height for fast adaptation to different product sizes.
  • AHSV: adjustable conveyor angle (0°, 15°, 30°) for continuous horizontal sealing. AVTSV: rotating head for horizontal/vertical conversion and adjustable conveyor height. Both models adapt quickly to different layouts and applications.
  • 7-inch full-color touchscreen HMI gives operators intuitive, real-time access to all validated sealing parameters, with recipe-based setup that reduces setup time, user error, and validation time during line changes.
  • Continuous monitoring and validation of temperature, pressure, and speed, with automatic reversal and rejection of any non-conforming seal, keeps sealing performance within validated limits at all times.
  • Process parameters and alarms can be logged via USB or Ethernet, supporting validated processes, traceability, and regulatory compliance.
  • Wide material compatibility, including PE, PP, medical laminates, paper pouches, and sterile barrier systems compliant with ISO 11607 and EN 868.
  • Compliance with key machine safety standards, including Emergency Stop functionality and real-time alarm notifications, ensures global-ready operator protection.
  • AVTSV adds an optional barcode scanner for near-instant changeovers; both models seal up to 10 meters per minute for high-volume production.
  • Backed by an industry-leading 3-year limited warranty.
