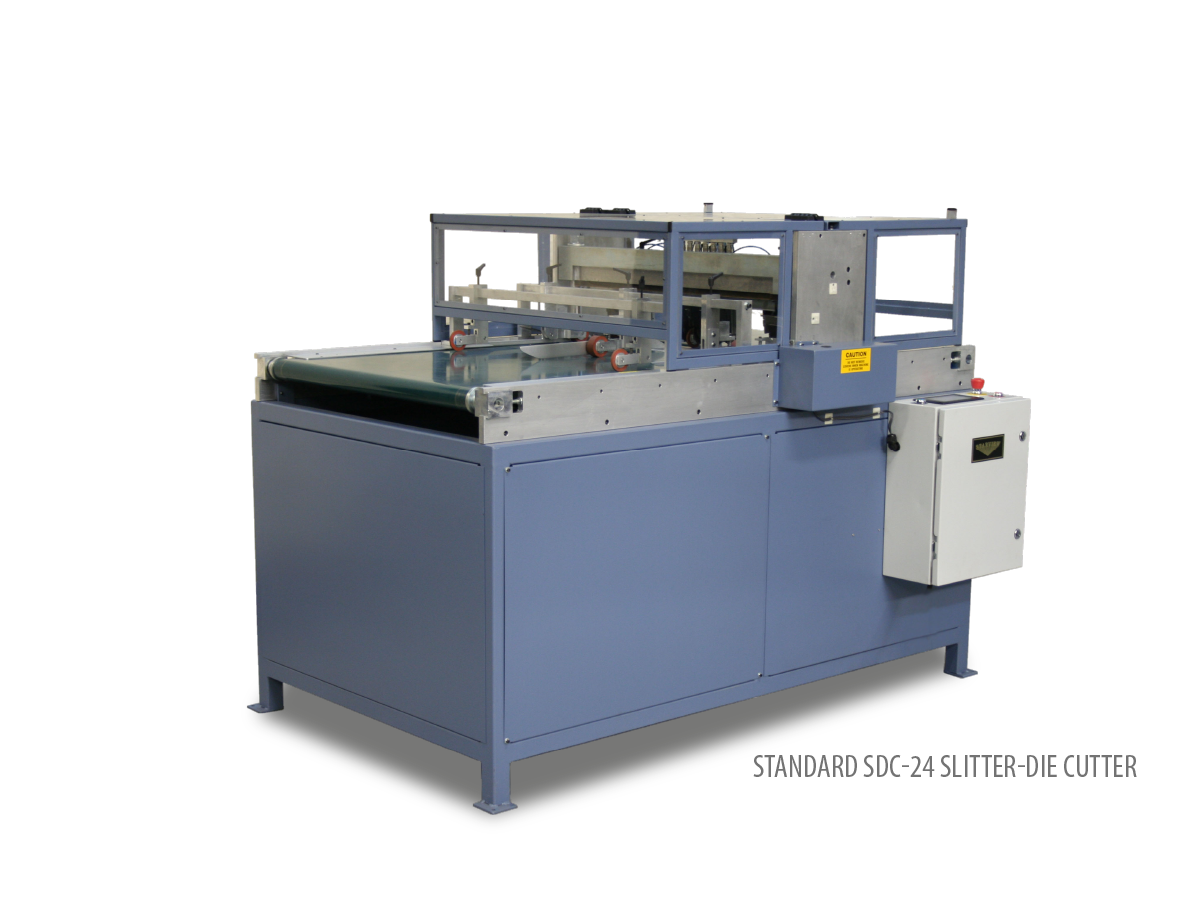

Starview's SDC Series Slitter / Die Cutters are designed specifically for processing skin boards into finished packages without the use of typical steel rule dies. Machines are available in standard working widths of 24 inches and 30 inches.
The automatic in-feed conveyor is fully programmable to set the cross cut. Adjustable wheels running on a hardened roller produce a full slit or a perforated cut. SBS skin boards or corrugated pads can be run on SDC machines.
SDC Details:
Built for your market:
SDC SERIES
Why a perfect fit?
Starview’s SDC Series combination slitting and die cutting machines are a cost effective way to trim skin packaged
products. These machines eliminate the use of individual steel rule dies for each different package configuration.
The SDC Series features an intermittent motion in-feed conveyor to transfer skin boards to the die cutting and
slitting area. Circular cutters running against a hardened steel roller are used to slit parallel to the movement of the
skin board. A pneumatic press activates the cross cutting perpendicular to the movement of the skin board. The
interval at which this cut is made is programmable from the touch screen operator interface panel.
Starview’s SDC Series machines utilize photocells and clear polycarbonate guards for operator safety. To prevent damage to the cross cutting knife, the SDC Series machines also utilize photocells to detect products that may be in the cutting area.
For standard die cutting operations using conventional steel rule dies Starview’s RP Series Roller Die Cutters should be considered.
